Video Scope for Active Optical Fiber (AOC)
Nowadays, more and more factories are beginning to use laser cutting machines to produce various jumpers for active optical cable AOC and other different occasions.
The height of most Jumpers’ fibers is above 100μm. How to measure the height of the fiber’s protrusion is the focus that most engineers want to study.
After laser cutting, the consistency of the height of the multi-core fiber jumper fiber needs more stringent control.

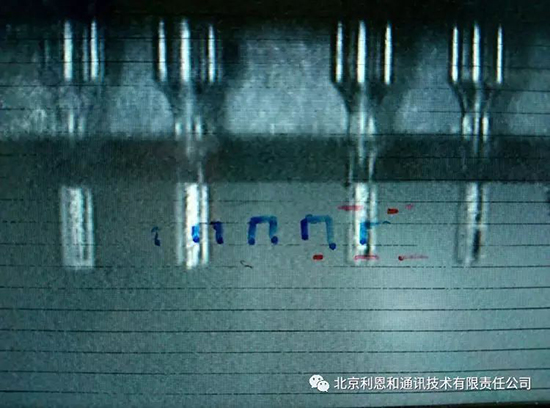

The FibKey 5600 multi-fold magnifying glass developed by our company can be used for professional observation of laser cutting products, such as observing the end face of the fiber after laser cutting, the side angle of the fiber, and the front profile of the fiber.

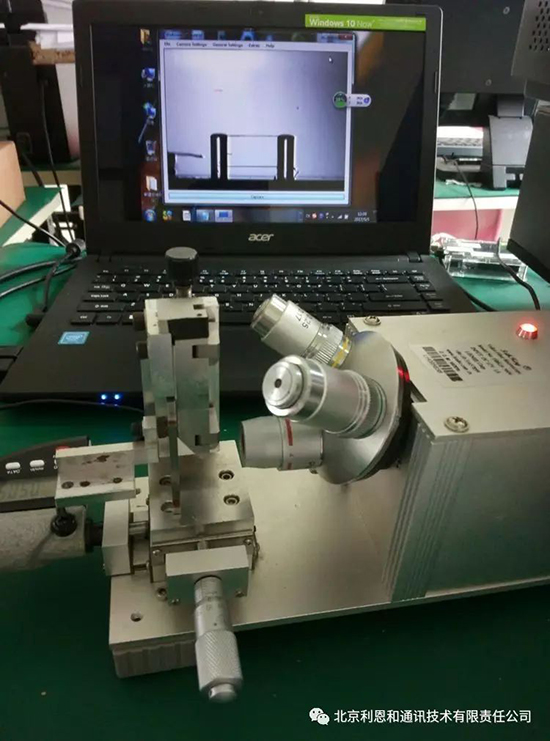

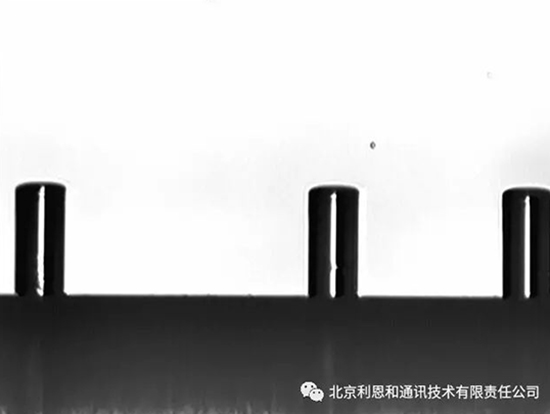

FibKey 5600 multiple magnifying glass can observe the fiber cutting angle, laser view. The spindle of the Sagitta laser cutting machine represented by our company is adjustable, which can also meet the angle requirements. In addition to the above functions, the FibKey 5600 multi-fold magnifying glass produced by Beijing Lienhe can also be used to measure the height of optical fibers. Use a professional clamp to hold the Jumper and place it in a FibKey magnifying glass to observe the front profile of the fiber. Using the front profile of the fiber, you can compare the height of the fiber or calculate the height of the fiber with related software.
Technical parameters:
- Number of lenses: 3
- Magnification: 80 times, 200 times and 400 times three times can be switched freely
- CCD area: 1/3 inch
- Focus method: manual focus
- Power consumption: 5W
- Working temperature: -10℃-40℃
- Display: 9.7-inch HD LCD
- Resolution 1024*768
- Power output: 5V 1A
- Volume: xxx*xxx
- Weight: 1.5KG
- Standard configuration: magnifying glass host, adjustment platform

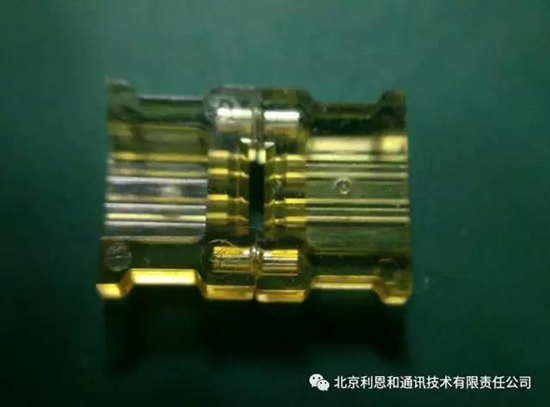

Related pictures
