Bench-top Compact Video Scope

The cost-effective FibKey FV-400/200/80 series optical fiber inspection scope is exclusively designed to inspect the end faces of various optical fiber connectors. Its user-friendly design and exceptional versatility make it an ideal tool for daily use. This desktop-friendly device offers top-tier technical performance, perfect for fiber optic patch cord manufacturers to evaluate the quality of optical fiber end faces.

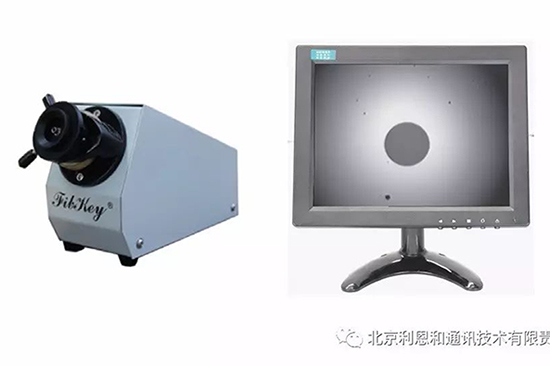

An optional standalone 9.7" (or other sizes) LCD monitor can be bundled with the scope. This combination significantly boosts inspection speed and quality, while maintaining a smooth and intuitive operation. Management personnel can easily gain a clear understanding of the production quality by observing the operators' work.
Moreover, the FibKey optical fiber inspection scope is ideal for training purposes. Its popularity among Chinese fiber optical cable assembly factories makes it a must-have piece of equipment for fiber optic patch cord manufacturers.
Enhenced Coaxial Illumination: The blue LED illuminates the fiber core, facilitating the assessment of cable status.
Visual Enjoyment: The clear and aesthetically pleasing images provide a delightful visual experience.
Fiber Position Adjustment Device: Equipped with a fiber position adjustment device suitable for aligning fiber positions and good for inspecting multi fiber connectors such as MT/MPO/FA.
Variouse Adapter Availible: Offers a variety of adapter interfaces including 2.50mm, 1.25mm, MT, MPO, SMA, and more.
Magnification Options: Provides multiple magnification options including 80x, 200x, 400x, and more.

Specifications::

• Magnification: 400x, 200x, or 80x, optional
• Image Sensor Size: 1/3 inch
• Focus: Manual
• X-Y adjustable range: -2.5 ~ 2.5 mm
• Power: 110/220V ac to 12V/1A DC power adapter, included
• Monitor: 9.7-inch TFT LCD, optional
• Resolution of LCD monitor (optional): 1024*768
• Dimensions: 15 x 20 x 25 cm
• Weight: 1.0 KG
• Optional Adapters: 1.25mm Universal, 2.5mm Universal, SMA/PC, E-2000/PC, E-2000/APC, MT/PC, MT/APC, MPO/PC, MPO/APC,
