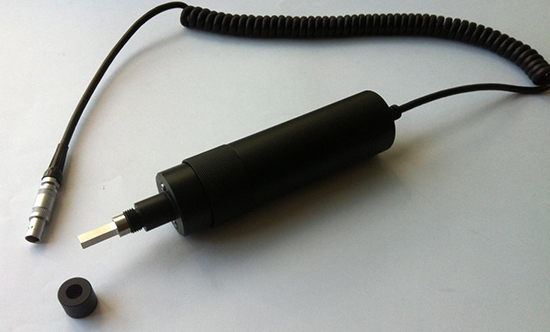

Hand-held Video Scope

Today, with the rapid development of communication technology, the bandwidth of optical fiber communication is increasing rapidly, and more and more DWDM systems are put into operation. In order to ensure high-quality transmission performance, in addition to using high-quality optical fiber connectors, it is more urgent to maintain the cleanliness of optical fiber connectors. In today's optical fiber transmission system, especially in DWDM system, even one micron chip or damage (near the core) can cause serious insertion loss. Therefore, it is very important to strictly check all fiber ends, including those on the distribution frame or hardware equipment. The video optical fiber inspection probe is an ideal equipment for inspecting the end faces of these optical fibers. < / BR > the system can save time and increase convenience for you. It can quickly and conveniently check the end face of optical fiber from the front of the distribution frame or hardware equipment - without having to go to the back of the distribution frame or disassemble the relevant hardware equipment. Instead of removing each connector, you just need to remove the front connector to check without removing the back connector. Moreover, in many hardware devices, such as optical fiber transceiver module, the probe video optical fiber inspection magnifying glass is the only feasible instrument, because in practice, it is often unrealistic to dismantle the system for inspection. The video fiber inspection probe is small and light, including coaxial LED light source, a set of optical lens system, and 1 / 3 INCH CCD video camera. The focusing button is used for fine adjustment of focal length. Matching with the video optical fiber inspection probe, various types of adapters are provided, which can be used to directly inspect various types of optical fiber connectors (FC, SC, St, LC, etc.) through the optical interface (or flange). The video signal of the video fiber inspection probe can be transmitted to the portable display device for display, and can also be output to the desktop monitor for indoor application.

Performance characteristics:

Two types of adapters are provided, which can directly check various types of optical fiber connectors (FC, SC, ST, LC, etc.) through the flange Clear and vivid images are displayed on the video monitor, and the probe is small and light The equipment video terminal is optional. The equipment video terminal is optional. The equipment video terminal is optional. The equipment video terminal is optional. The equipment video terminal can be equipped with a 9.7-inch LCD monitor or a 3.5-inch LCD monitor.

Technical parameters:

Magnification: 200 times magnification
CCD area: 1/3 inch
Focus method: manual focus
Power consumption: 2W
Working temperature: -10℃-40℃
Display: 9.7-inch HD LCD
Resolution:
Power output: 5V 1A
Volume: xxx*xxx
Weight: 0.5KG
Standard configuration: host, 1.25mm device adapter, 2.5mm device adapter
Optional: 9.7-inch LCD monitor, 1.25mm module adapter, 2.5mm module adapter, 1.25mm jumper adapter, 2.5mm jumper adapter
