Wrist Support: During operation, the wrist rests comfortably on the desktop, eliminating the need to suspend the arm, thus reducing labor intensity.
Optimized Layout: The large LCD screen and operational interface are ergonomically designed, ensuring intuitive and comfortable operation.
Interactive Operation: The display screen and operating mechanism are cleverly designed to interact seamlessly, providing a smooth operational experience.

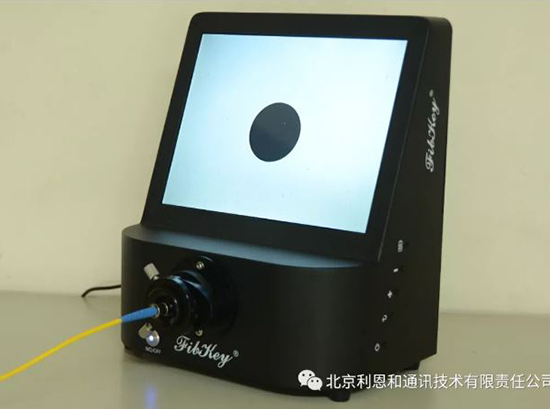

Superior Visual Experience:High-Definition Display: Features a 9.7" LCD screen for crisp, clear images with adjustable brightness and contrast.
Enhenced Coaxial Illumination: The blue LED illuminates the fiber core, facilitating the assessment of cable status.
Visual Enjoyment: The clear and aesthetically pleasing images provide a delightful visual experience.
Fiber Position Adjustment Device: Equipped with a fiber position adjustment device suitable for aligning fiber positions and good for inspecting multi fiber connectors such as MT/MPO/FA.
Variouse Adapter Availible: Offers a variety of adapter interfaces including 2.50mm, 1.25mm, MT, MPO, SMA, and more.
Magnification Options: Provides multiple magnification options including 80x, 200x, 400x, and more.

Specifications:

• Magnification: Available in 80x, 200x, 400x.
• Image Sensor Size: 1/3 inch
• Focus: manual focus
• Power: 110/220V AC ~ 12 V DC power adapter, included
• X-Y adjustable range: -2 ~ 2 mm
• Display: 9.7-inch TFT LCD
• LCD Resolution 1024*768
• Volume: 35 x 35 x 20 cm, approx.
• Weight: 1.5KG
• Adapters: 1.25mm universal adapter, 2.5mm universal adapter, SMA, E-2000, MT/PC, MT/APC, MPO/APC
• Custom Adapters availible upon request
