Multi-Mag Video Scope

FibKey 5600 Series Multi-Mag Video Scope: The Ultimate Tool for Fiber Optic Connector Manufacturing

The FibKey 5600 Series Multi-Magnification Video Scope represents the epitome of precision and adaptability in fiber optic connector manufacturing. Cost-effective and efficient, this inspection tool is tailored to meet the unique challenges of the industry, ensuring consistent, high-quality production.
With its multi-lens capability, the FibKey 5600 Series empowers users to select the appropriate magnification for each inspection task. This flexibility allows for accurate inspections of a wide range of fiber optic connector types and sizes, including standard single fibers like FC, SC, ST, SMA, or LC (PC or APC), as well as multi-fiber connectors like MT, MPO (PC or APC). Fibers of varying diameters, including 600μm, 400μm, 200μm, and more, are also accommodated, ensuring that every fiber meets industry standards.
The scope's diverse adaptor options guarantee seamless compatibility with a wide range of fiber optic connector types and sizes. Manufacturers can inspect connectors with varying ferrule sizes or interface configurations, ensuring compatibility and quality across the board. Regular adapters are immediately available, and custom adapters can be requested to further expand the scope's adaptability.
The interchangeable front-end modules add an extra layer of flexibility, allowing users to effortlessly switch between different tasks. Each front-end module is equipped with the X-Y-Z fine and smooth adjustable function, providing precise control and maneuverability for accurate inspections.
The built-in camera offers further flexibility, with users able to choose between BNC video output and USB port when placing their order. A standalone LCD monitor can be added as an optional accessory for a clear and concise visual representation of the inspection process. Additionally, a standard software for capturing and saving images is offered free of charge when selecting the USB format camera. Customized software versions are also available, tailored to specific needs, further enhancing the scope's functionality and usability.
In summary, the FibKey 5600 Series Multi-Mag Video Scope is the ultimate tool for fiber optic connector manufacturing. Its precision, adaptability, and cost-effectiveness make it an invaluable asset for manufacturers seeking to achieve consistent, high-quality production while optimizing their overall performance and cost efficiency.

Specifications:

  • Number of lenses: 3
  • Magnification: 80x, 200x and 400x
  • Image Sensor Size: 1/3 inch
  • Focus: Manual
  • Focus Fine Adjust Range: 0 ~ 10 mm
  • X-Y adjustable range: -5 ~ 5 mm
  • Power: 110/220V ac to 12V/1A DC power adapter, included
  • Monitor: 9.7-inch TFT LCD, optional
  • Resolution of LCD monitor: 1024*768
  • Dimensions: 15 x 15 x 25 cm
  • Weight: 1.0 KG
  • Optional Adapters: 1.25mm Universal, 2.5mm Universal, SMA/PC, E-2000/PC, E-2000/APC, MT/PC, MT/APC, MPO/PC, MPO/APC,

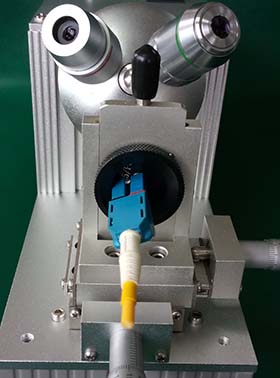

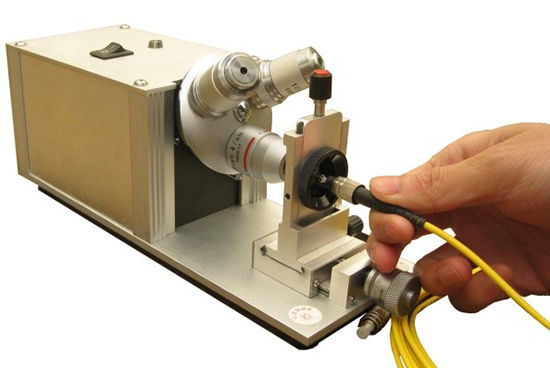

Related pictures
