Multi-dimensional Video Scope for Bare Fiber

The Multi-dimensional Video Microscope for Bare Fiber incorporates a standard bare fiber clamp, which securely grips the fiber, facilitating smooth manipulation and precise positioning. To observe the end face of the fiber, simply adjust the clamp to a horizontal orientation and position it accordingly. Alternatively, for side-view examination of the bare fiber, attach the clamp to a specialized vertical observation mechanism, ensuring that the side-view of the fiber aligns with the optical lens.

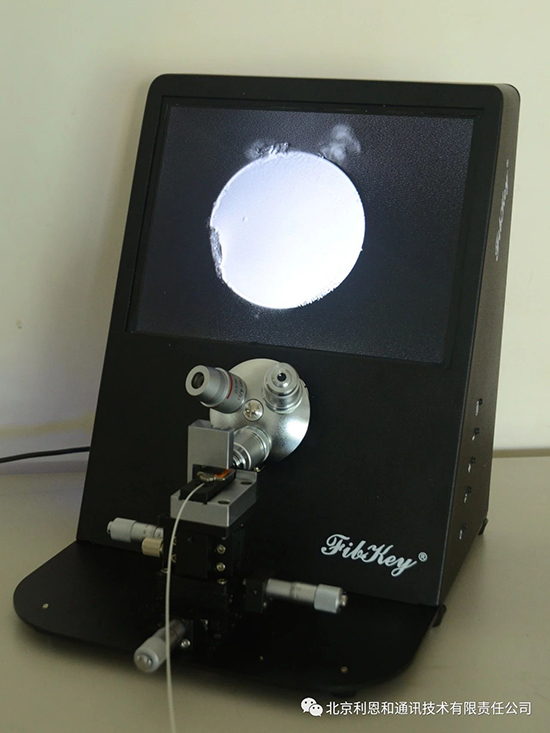

The picture below is the end face of 125um bare fiber under 400 times optical magnification:

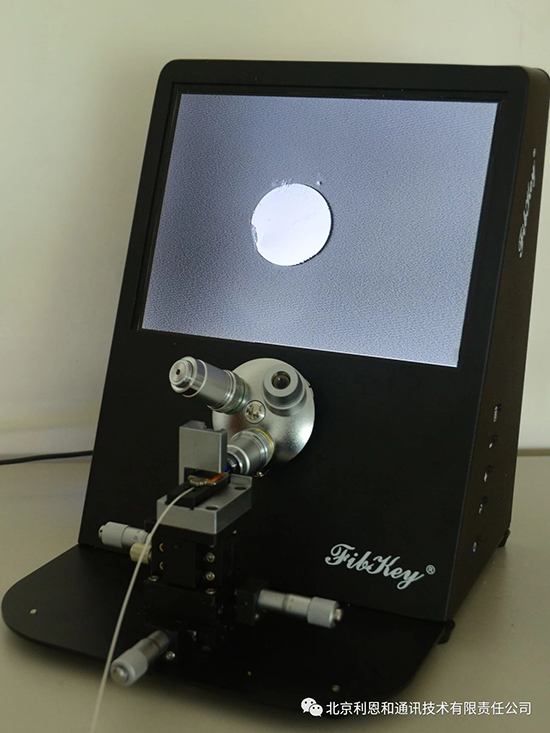

The picture below is the end face of 125um bare fiber under 200 times optical magnification:

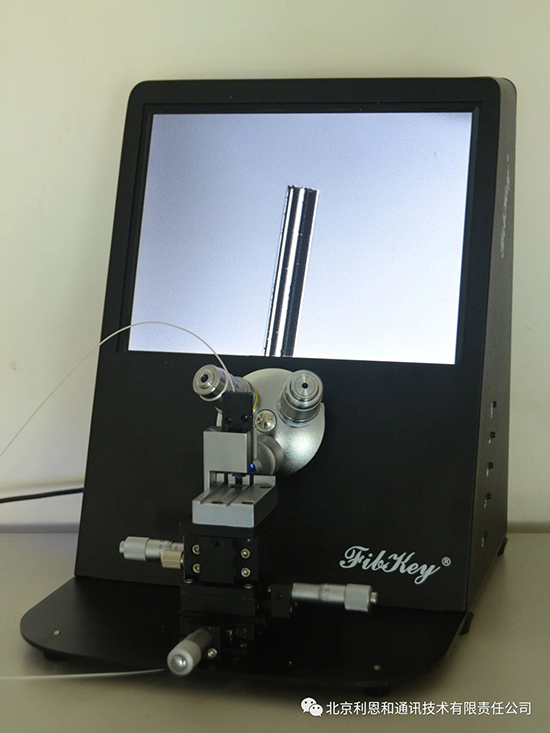

The picture below is the side-view of 125um bare fiber under 200 times optical magnification:

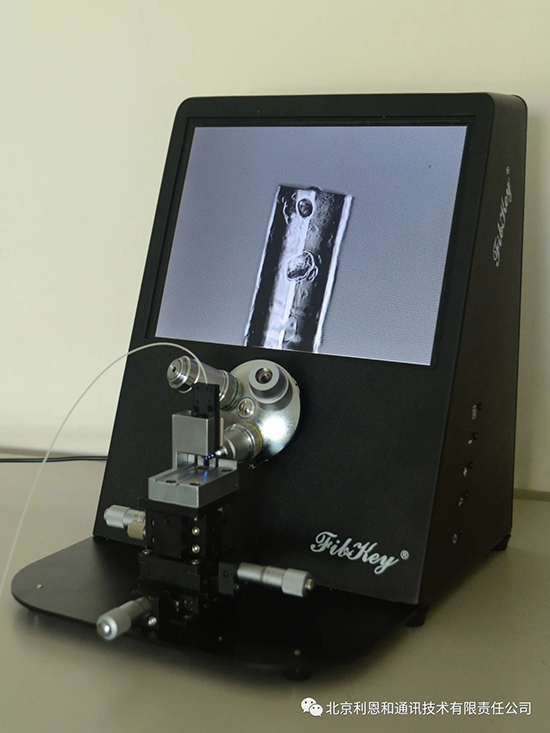

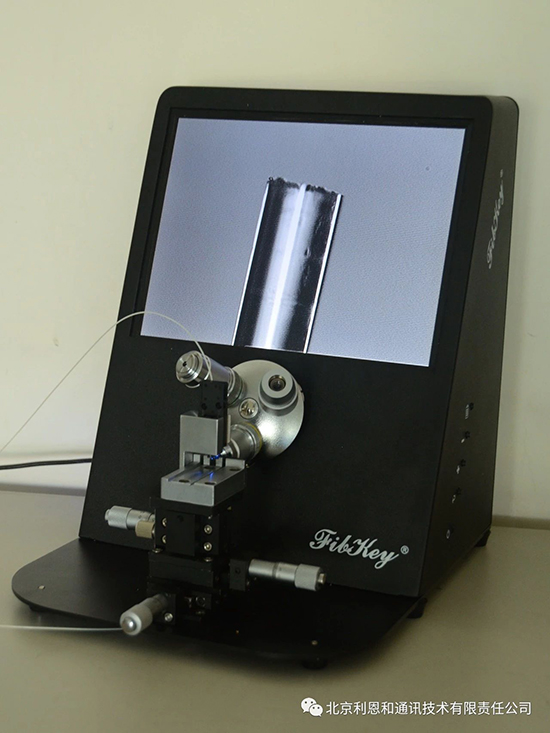

The picture below is the side-view of a 125um bare fiber, magnified 200 times under an optical microscope. This picture exhibits the appearance of the fiber's side-view when contaminated or dirty.

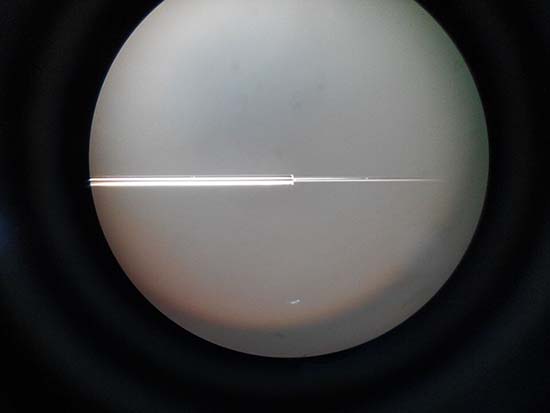

The picture below is the side-view of a 125um bare fiber, magnified 80 times under an optical microscope:

Specifications:

  • Magnification: Available in 80x, 200x, 400x.
  • Image Sensor Size: 1/3 inch
  • Focus: manual focus
  • Power: 110/220V AC ~ 12 V DC power adapter, included
  • X-Y adjustable range: -5 ~ 5 mm
  • Display: 9.7-inch TFT LCD
  • LCD Resolution 1024*768
  • Volume: 35 x 35 x 20 cm, approx.
  • Weight: 1.5KG
