FibKey Lens Fiber Inspection Station

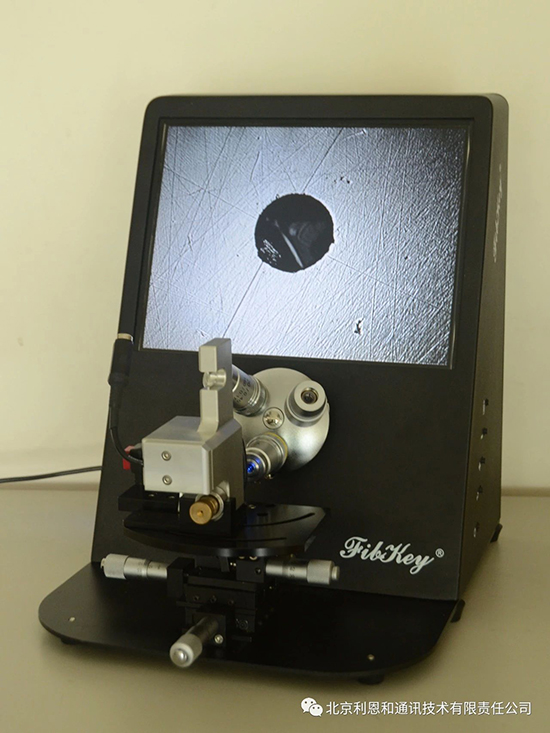

During the bare fiber polishing process, the bare fiber polishing module is seamlessly transferred to the purpose-built platform of the Lens Fiber Inspection Station. This allows for a clear and convenient inspection of the polished bare fiber (or fiber lens) without the need to disassemble the optical fiber from the module. The platform features a unique angle adjustment device, enabling inspection of the fiber endface from various angles.

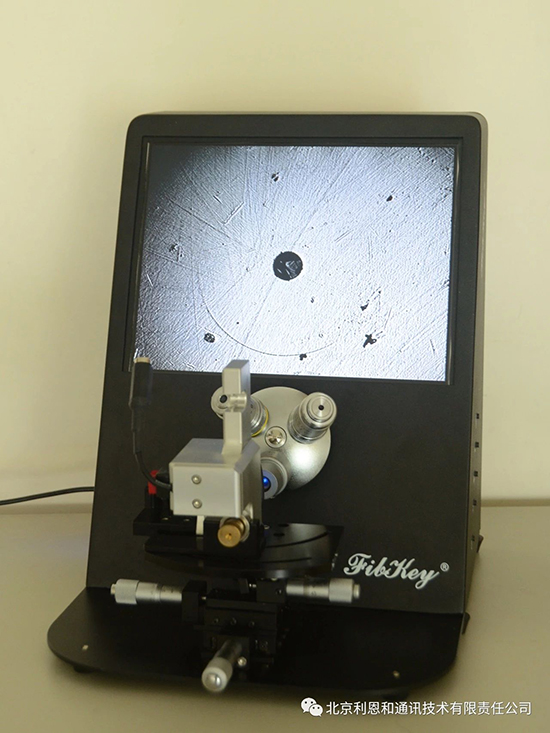

To ensure optimal viewing, the station is equipped with dedicated X-Y-Z stages, enabling precise positioning of the fiber. Additionally, three objective lenses with varying magnifications are configured to cater to a wide range of inspection needs. For even more detailed analysis, optional software is available to digitally measure and analyze the angle of the lensed fiber. This software provides users with accurate data and insights to enhance their fiber inspection processes.

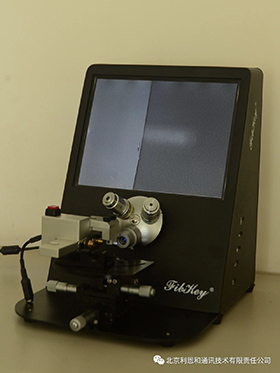

Or switch objective lens with different magnifications to obtain images with different magnifications.

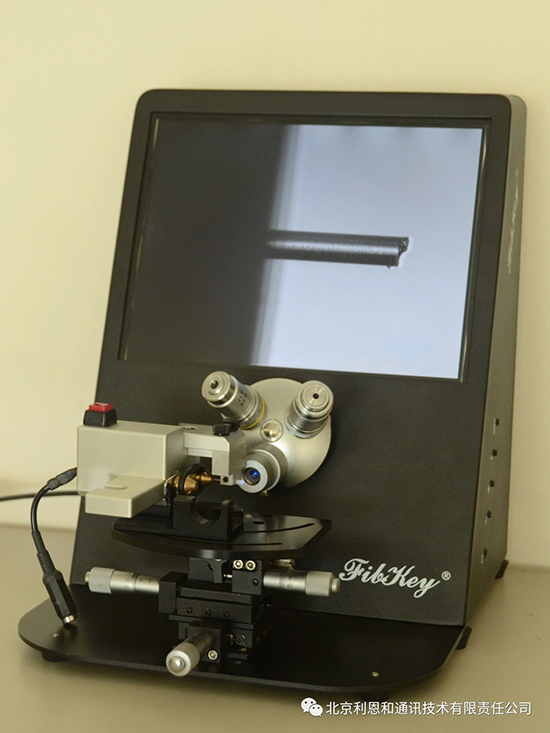

The station can also check the fiber angle from the side view by placing the module at a different orientation.

Specifications:

• Magnification: Available in 80x, 200x, 400x.
• Image Sensor Size: 1/3 inch
• Focus: manual focus
• Power: 110/220V AC ~ 12 V DC power adapter, included
• X-Y adjustable range: -5 ~ 5 mm
• Display: 9.7-inch TFT LCD
• LCD Resolution 1024*768
• Volume: 35 x 35 x 20 cm, approx.
• Weight: 1.5KG
