Video Scope for TOSA

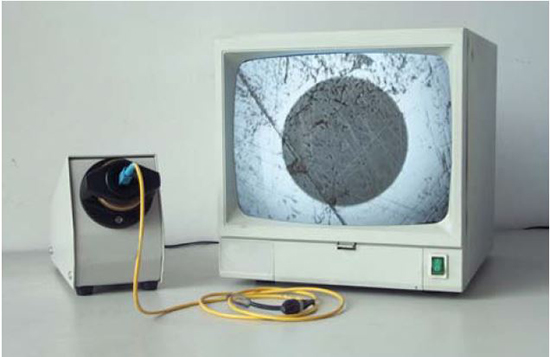

The high-performance FVT series TOSA end face and optical fiber connector end face inspection video magnifying glass provided by our company is specially used to inspect the TOSA end face, and the FVT-200P magnifying glass is used to inspect the end face condition of the optical fiber and the center part of the ceramic;
The FVT-FRL magnifying glass can observe all the conditions of the entire ceramic end surface of 2.5mm and 1.25mm ferrules while ensuring a certain magnification.
In addition to checking the TOSA end face, FVT series video magnifiers can also be used to check the end face of ordinary optical fiber connectors after replacing the adapter. Comfortable, simple and versatile operation,
The scope of application is wide. The FVT series of video magnifiers provide top-level technical performance, which is suitable for the inspection of the end face quality of the relevant optical fiber device manufacturers.
The video display improves the inspection speed and inspection quality, and the operation is comfortable and simple. It is an ideal tool to use every day, fast and precise.
Related management personnel can clearly see the production quality behind the operators. It is suitable for R&D department to conduct related research, and suitable for process department to formulate related processes.
In addition, the optical fiber video magnifier is particularly suitable for relevant training. It is one of the essential products for optical device manufacturers.

Specifications:

Fast and convenient, accurate and efficient, the image is clear and vivid, saving time and reducing cost
Pre-center positioning, the core image is always displayed in the center position
Ergonomic design, especially suitable for optical fiber connector manufacturers
Long working life, internal LED lighting bulb life up to 100,000 hours, within
No user-serviceable parts at all
High resolution: every optical detail carefully designed to ensure the best Good resolution.
Absolute laser safety, built-in CCD camera (instead of human eyes) to view the fiber end Even if you check the end face of the fiber that is transmitting the laser, there is no safety issue.
Built-in imported CCD camera, including black and white LCD monitor
Wide range of applications: both TOSA end face and fiber connector end face can be inspected.
High performance-price ratio

Technical parameters:

• Magnification: 200 times magnification, 80 times magnification optional
• CCD area: 1/3 inch
• Focus method: manual focus
• Power consumption: 5W
• Working temperature: -10℃-40℃
• Display: 9.7-inch HD LCD
• Resolution 1024*768
• Power output: 5V 1A
• Volume: xxx*xxx
• Weight: 1.5KG
• Standard configuration: magnifying glass host, 1.25mm device adapter, 2.5mm device adapter, 9.7-inch LCD monitor
• Optional: 1.25mm module adapter, 2.5mm module adapter, 1.25mm jumper adapter, 2.5mm jumper adapter
