Stripping tool

  • FibKey CFS-2 dual-port fiber stripper

    Double opening, multifunctional. The V-shaped opening on the pliers blade is used to precisely peel off the 250µm, 500µm coating layer and 900µm buffer layer. The second opening is used to peel off the outer sheath of the 3mm pigtail.

  • Aramid scissors

    Aramid (Kevlar) yarn is a high-strength product, which is widely used in fiber optic jumpers, ADSS cables, and military body armor. Anti-slip serrated scissors are used to trim Kevlar filaments to avoid slipping when ordinary scissors cut Kevlar filaments. Special materials and processes ensure long life.

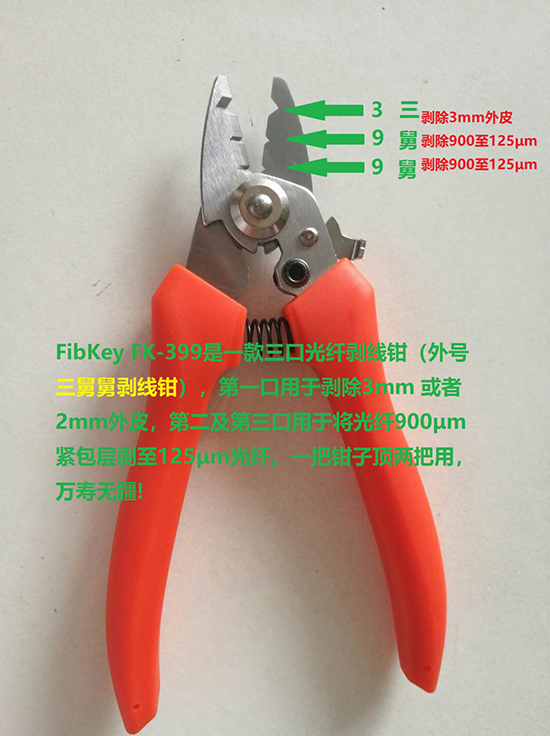

  • FibKey FK-399 three-port fiber stripper

    Three-port optical fiber stripper is specially used to strip 3mm jumper wire and strip 900um buffer layer to 125um fiber. There are two jaws dedicated to stripping 900um buffer layer to 125um fiber, which means that the working life of this pliers is actually at least twice that of other types of pliers.

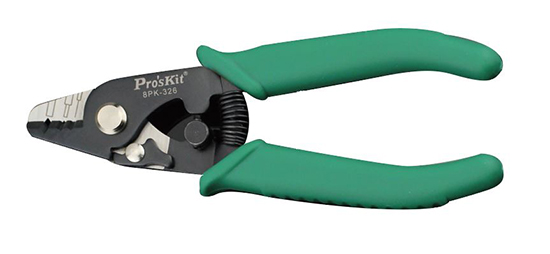

  • 8PK-326 Three-hole optical fiber stripper

    Three-port design. The first port is used to strip the outer sheath of 2mm or 3mm fiber. The second port is used to strip the 900um tight sleeve to 125um. The third port is used to strip the 250um coating to 125um.

  • Domestic FK-2 dual-port fiber stripper pliers

    The domestic double-nose pliers are cheap, the size is the same, and the life span is slightly shorter.

  • Optical fiber pen

    Used for optical fiber cutting, suitable for optical fiber connector and various optical device production, optical fiber testing and other places. The finely ground blade is extremely sharp, ensuring that the optical fiber is cut crisply and without mud and water. The blade material has extremely high hardness, ensuring sufficient working life.

  • Multi-nose pliers HT-5021

    2mm, 3mm fiber jumper indoor fiber optic cable PVC jacket stripping pliers. Suitable for stripping cables with different outer diameters.

  • Leather fiber optic cable stripper

    Suitable for leather wire, tightly wrapped stranded cable, VATV cable, CB cable, SC/SJ/SJT and other forms of power cables

    Connecting tool

  • V-shaped groove

    LH-2010 precision optical fiber connector is mainly used for the active coupling connection of optical fiber and optical fiber in optical fiber testing, experiment and construction. It has the characteristics of simple structure, reliability and convenient operation. High-precision V-groove positioning fiber is used to make the two fibers collimated and connected, and the loss is less than 0.5dB (same single-mode fiber). Two adjustable positioning bases can adapt to various coated fibers.

  • Optical fiber matching paste

    L uses fiber matching paste to reduce the Fresnel reflection caused by the low refractive index air gap between the fiber end faces. This product is transparent, crystal clear, not easy to flow, and its refractive index is similar to that of optical fiber, so it is called matching paste.

    • Other

  • Red light pen

    Visible light fault locator is an indispensable tool for quickly finding microbend losses and break points in optical fibers. If the fiber is excessively bent, the red laser light will leak through the outer skin; similarly, light leakage will also be seen at the break point. It can also be used to determine if the ceramic connector is damaged.

  • Fiber optic connector curing oven

    It is carefully designed according to the actual needs of optical fiber connector production, and the operation is simple and convenient. The unique horizontal placement design allows the operator to see the actual working conditions at a glance. The curing oven can also be placed vertically to meet different needs.
